UC300ETH-5LPT ethernet motion controller

Ultimul produs din gama SmoothStepper, aceasta interfata comunica cu PC pe Ethernet, facand legatura mai rapida si mai stabila chiar si la distante mari. Mai mult, se poate conecta via router/switch. Placa UC300ETH-LPT cu dimensiuni compacte vine cu noutatea ca mareste numarul de intrari/iesiri considerabil. Asfel, adaugarea fizica pe panou de butoane gen Cycle Start, Feed Hold, Stop, Single BLK, MPG pendant, etc devine posibila, in varianta clasica fiind doar 5 intrari (3 limits, E-stop, Touch Probe).

- Controleaza 6 axe simultan;

- Compatibil 100% cu Mach3, Mach4, UCCNC;

- Operare in frecventa de pana la 400KHz;

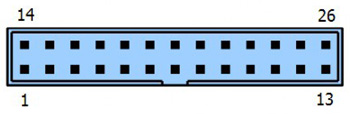

- 49 intrari digitale, 36 iesiri digitale pe port IDC26;

- 2 intrari analogice, 2 iesiri analogice (PWM);

- Legatura cu PC pe cablu Ethernet (retea);

- Functioneaza prin legatura directa cu PC sau via router/switch;

- Viteza mare de comunicare cu data buffer pt. o operare robusta si stabila;

- Compatibil Windows XP, 7, 8, 8.1 si 10 versiuni 32 bits si 64 bits.

Port #2 si #3

Pin number / Signal type

1 / output 1
2 / output 2
3 / output 3
4 / output 4
5 / output 5
6 / output 6
7 / output 7
8 / output 8
9 / output 9
10 / input 10
11 / input 11
12 / input 12
13 / input 13
14 / output 14
15 / input 15
16 / output 16
17 / output 17
18-25 / GROUND
26 / 5V output

Port #1, #4 si #5

Pin number / Signal type

1 / output 1
2 / input 2
3 / input 3
4 / input 4
5 / input 5
6 / input 6
7 / input 7
8 / input 8
9 / input 9
10 / input 10
11 / input 11
12 / input 12
13 / input 13
14 / output 14
15 / input 15
16 / output 16
17 / output 17
18-25 / GROUND
26 / 5V output

Port Analog I/O

Pin number / Signal type

1 / 12V output
2 / GROUND
3 / Analog input 1
4 / Analog input 2
5 / GROUND
6 / Analog output 1
7 / Analog output 2
8 / 12V output
9 / 12V output
10 / GROUND
11 / Analog input 1
12 / Analog input 2
13 / GROUND
14 / Analog output 1
15 / Analog output 2
16 / 12V output
