Motor pas cu pas Nema 11

Datorita dimensiunilor sale mici (Nema11 - flansa prindere 28x28mm) acest motor se incadreaza perfect in proiectele Dvs ce au nevoie de precizie si miniaturizare. Folosite la indicatoare auto, automatizari mici cat si imprimante 3D, aceste steppere fac o combinatie perfecta cu driverele A4988, DRV8825 sau TCM2209.

Caracteristici tehnice:

Manufacturer Part Number - 11HS5406
Motor Type - Bipolar Stepper
Step angle: 1.8 °
Current: 0.67A
Shaft diameter: 5mm
Motor lenght: 51mm
Rated voltage: 6.2V
Phase resistance 9.4 ohm
Phase inductance: 7.2mH
Holding torque: 12 N.cm (17 oz.in)
Detent torque: 0.8N.cm Max
Rotor torque: 18 g.cm2
Lead wire:4
Lead lenght: ~300mm

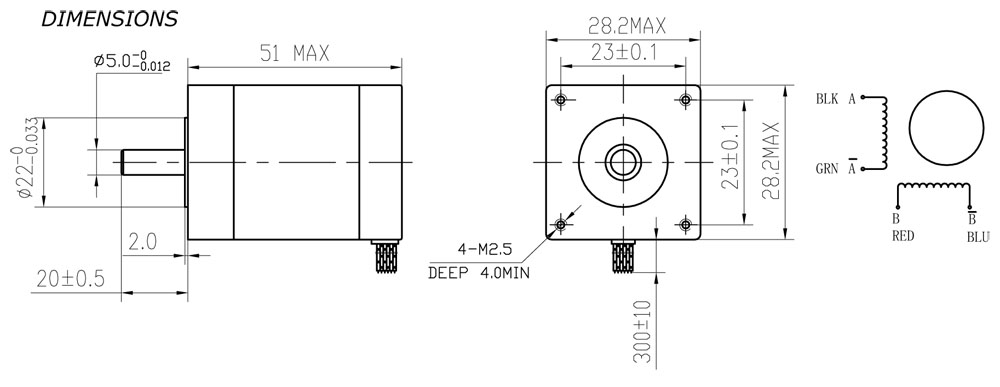

Frame size: 28x28mm
Prindere Nema 11 4x M2.5
Motor weight: 180g
Manufacturer: act motor
